E Series | Inverted Bucket Steam Traps
Steam Traps E Series | Inverted Bucket Steam Traps
ER25
1980 Received the Award for Excellence in Energy Saving
Features/Applications
Features
Complete steam containment
A double steam separation mechanism (implemented with a U-shaped duct and inverted bucket) provides reliable steam separation and ensures trap tightness.
Superb durability
Offers superb durability thanks to the SCCV System valve and robust super lever, as well as stainless steel internal components.
Free from steam and air locking
This model is free from steam and air locking due to a small air vent hole in the top of the bucket (discharges hot air and non-condensable gases).
Condensate recovery
With its high degree of back pressure tolerance, this model supports condensate recovery at pressures up to 90% of the upstream pressure.
Easy maintenance
For quick and easy maintenance, this model can be repaired directly in line.
*’SCCV System’ is an abbreviation of Self Closing and Centering Valve System.
Typical applications
Suitable for use in a wide range of fields including the plant industry, foodstuff manufacturing, dyeing, cleaning, and air conditioning.
Dimensions/Weight
Dimensions/Weight
Flanged
| Size | Flange standards | Dimensions (mm) | Dimensions (in) | Weight | |||||||||
| Ｌ | Ｈ1 | H2 | H3 | W | Ｌ | Ｈ1 | H2 | H3 | W | (kg) | (lb) | ||
|
1/2” |
JIS(RF) 10K,20K,30K,40K |
340 |
210 |
180 | 345 | 248 | 13.4 | 8.3 | 7.1 | 13.6 | 9.8 |
51,0 |
112.4 |
|
ASME/JPI(RF) 150lb,300lb |
|||||||||||||
|
ASME/JPI(RF) 600lb |
345 | 13.6 | |||||||||||
|
ASME/JPI(RJ) 150lb,300lb,600lb |
|||||||||||||
|
JIS(RF) 63K |
380 | 15.0 | 58,0 | 127.9 | |||||||||
|
ASME/JPI(RF) 900lb |
|||||||||||||
|
ASME/JPI(RJ) 900lb,1500lb |
51,0 | 112.4 | |||||||||||
| 1 1/4” 1 1/2” 2” |
JIS(RF) 10K,20K,30K,40K |
380 | 15.0 | 58,0 | 127.9 | ||||||||
|
ASME/JPI(RF,RJ) 150lb,300lb,600lb |
|||||||||||||
|
JIS(RF) 63K |
400 | 15.8 | |||||||||||
|
ASME/JPI(RF,RJ) 900lb |
|||||||||||||
|
ASME/JPI(RJ) 1500lb |
|||||||||||||
| Size | Flange standards | Dimensions (mm) | Dimensions (in) | Weight | |||||||
| L | H1 | H2 | H3 | L | H1 | H2 | H3 | (kg) | (lb) | ||
| DN15-25 | DIN PN40 | 340 | 210 | 180 | 345 | 13.4 | 8.3 | 7.1 | 13.6 | 51,0 | 112.2 |
|
DIN PN63/ PN100 (DN15/DN20) |
345 | 13.6 | |||||||||
|
DIN PN63/PN100 (DN25) |
380 | 15.0 | |||||||||
| DN32-50 |
DIN PN40/PN63/PN100 |
400 | 15.8 | 58,0 | 127.9 | ||||||
*Customized face-to-face dimensions on request.
*Please contact MIYAWAKI for further information.
Socket Weld
| Size | Dimensions (mm) | Dimensions (in) | Weight | |||||||||
| Ｌ | Ｈ1 | H2 | H3 | W | Ｌ | Ｈ1 | H2 | H3 | W | (kg) | (lb) | |
| 1/2” 3/4” 1” 1 1/4” 1 1/2” |
|
210 | 180 | 345 | 248 | 13.4 | 8.3 | 7.1 | 13.6 | 9.8 | 48,0 | 105.8 |
| 2” | 380 | 15.0 | 49,0 | 108.0 | ||||||||
Specifications
| Model | Connection |
Max. operating pressure |
Max. operating pressure differential |
Max. operating temperature |
Body material | ||||
| Type | Size | (MPa) | (psig) | (MPa) | (psig) | (℃) | (℉) | ||
| ER25-25 |
Flanged RF,RJ
|
1/2” | 2,5 | 360 | 2,5 | 360 | 425 | 797 |
Cast steel SCPH2/WCB |
| 3/4” | |||||||||
| 1” | |||||||||
| 1 1/4” | |||||||||
| 1 1/2” | |||||||||
| 2” | |||||||||
| ER25-45 | 1/2” |
4,4 |
640 | 4,4 | 640 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| 1 1/4” | |||||||||
| 1 1/2” | |||||||||
| 2” | |||||||||
| ER25-65 | 1/2” | 6,4 | 925 | 6,4 | 925 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| 1 1/4” | |||||||||
| 1 1/2” | |||||||||
| 2” | |||||||||
| ER25W-25 |
Socket Weld SW |
1/2” | 2,5 | 360 | 2,5 | 360 |
425 |
797 |
Cast steel SCPH2/WCB |
| 3/4” | |||||||||
| 1” | |||||||||
| 1 1/4” | |||||||||
| 1 1/2” | |||||||||
| 2” | |||||||||
| ER25W-45 | 1/2” | 4,4 | 640 | 4,4 | 640 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| 1 1/4” | |||||||||
| 1 1/2” | |||||||||
| 2” | |||||||||
| ER25W-65 | 1/2” | 6,4 | 925 | 6,4 | 925 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| 1 1/4” | |||||||||
| 1 1/2” | |||||||||
| 2” | |||||||||
*Available flange standards: ASME/JPI, DIN, JIS
*Customized face-to-face dimensions on request.
*Please contact MIYAWAKI for further information.

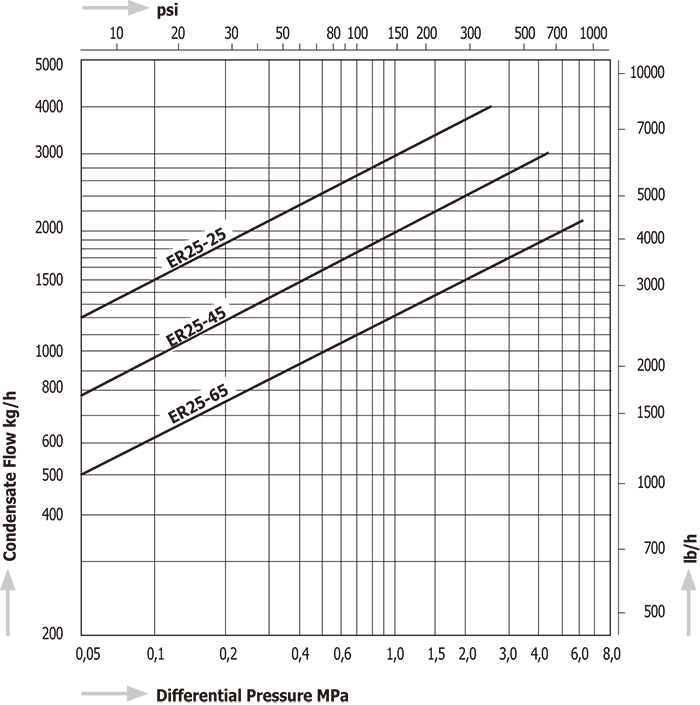

Discharge Capacity
Installation Examples
Download
* Membership registration is required to download the documents.
