Direct Acting for steam

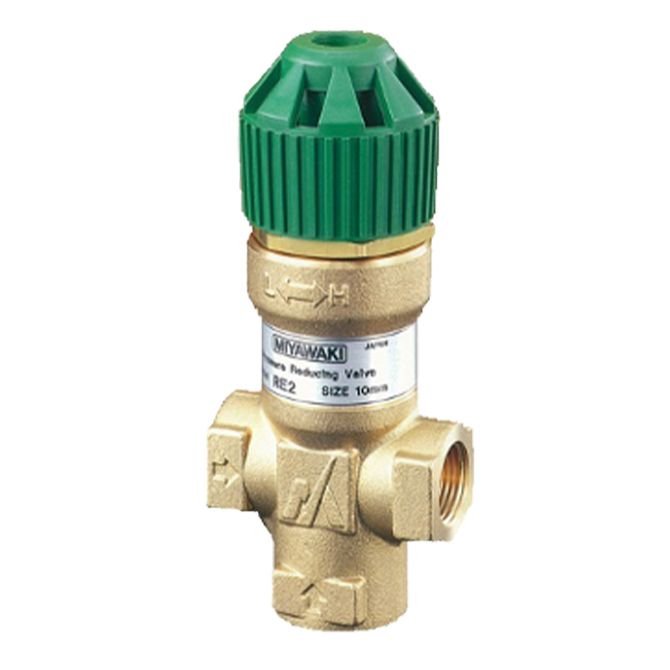

Pressure Reducing Valves Direct Acting for steam RE2

Pressure Reducing Valves Direct Acting for steam

RE2

      Built-in screen / One push blow mechanism

      Pressure Reducing Valves Direct Acting for steam RE2

      Features/Applications

      Features

      • Direct acting pressure reducing valve for steam

        Automatic valve that reduces the steam supply pressure to a defined set pressure.
        Pressure fluctuations on upstream side are followed by the downstream side.
        No external energy required

      • Operating features of direct acting pressure reducing valves

        Downstream pressure changes are detected in the detection chamber, and the degree of opening of the valve is directly adjusted to maintain the set pressure.

      • Compact and cost effective design

        It is smallest among MIYAWAKI's pressure reducing valves. Can be installed in tight spaces thanks to its compact design (small/lightweight). Offers reliable operation, energy saving, and productivity improvement.

      • Superb durability

        Thanks to adopt overstress prevent mechanism which is MIYAWAKI's unique mechanism, and micro bellows valve which is made from stainless steel, making it durable and corrosion-resistant.

      • Easy handling

        Pressure can easily adjusted by the topside handle.

      • Flexible installation

        This product can be installed either horizontally or L-shaped.

      • Easy maintenance

        An easy in-line access ensures easy and fast maintenance.

      • One push blow mechanism

        Our unique blow off mechanism makes it easy to remove scale.

      Typical applications

      Suitable for steam iron in textile and cleaning factory, small steam equipment, and other such applications.

      Dimensions/Weight

      Dimensions/Weight




      Size Dimensions (mm) Dimensions (in) Weight
      L H1 H2 W L H1 H2 W (kg) (lb)
      3/8” 50 89 31 42 2.0 3.5 1.2 1.7 0,56 1.2

      Specifications

      Model Connection

      Max. operating

      pressure

      operating

      pressure range

      Control

      pressure range

      Max. pressure

      reduction ratio

      Max. operating

      temperature

      Body

      material

      Type Size (MPa) (psig)

      Primary side

      pressure

      (MPa)

      Primary side

      pressure

      (psig)

      Secondary side

      pressure

      (MPa)

      Secondary side

      pressure

      (psig)

      (℃) (℉)
      RE2

      Screwed

      Rc,NPT

      3/8” 1,0 145 0,2 - 1,0 29 - 145 0,1 - 0,5 14.5 - 73 10:1 184 363

      Brass
      C3771

      ● Accessories: Y strainer x1
      ● Offset: 0,05MPa (7.3psig) or lower
      ● Minimum differential pressure: 0,05MPa (7.3psig)
      ● Lockup pressure: 0,03MPa (4.4psig) or lower
