Steam Fired Instantaneous Water Heater | One-Way Method

Hot Water Supply System Steam Fired Instantaneous Water Heater | One-Way Method LM15-Ⅳ

Hot Water Supply System Steam Fired Instantaneous Water Heater | One-Way Method

LM15-Ⅳ

      ・Passed the test of effect to water quality that meet JIS ・Hot water supply between 40℃ and 70℃ (104°F and 158°F)

      Hot Water Supply System Steam Fired Instantaneous Water Heater | One-Way Method LM15-Ⅳ

      Features/Applications

      Features

      • Can be installed in tight spaces thanks to its compact design (small/lightweight).

        With a compact size, this product can be wall mounted in the place it is required.

      • Provides clean hot water

        Employs an indirect heating system* with water and steam.
        *Indirect heating system refers to a system of heating that uses a heat exchanger and where the water and steam do not come into direct contact.
        This means that the quality of the hot water is not impacted by chemicals or other matter in the steam.

      • Industry top-class hot water supply volume

        Compact, yet able to instantaneously supply up to 30ℓ/min of hot water.

      • High thermal efficiency

        Thermal efficiency of 91% that surpasses gas and electric hot water supplies.

      • Environmentally friendly

        With no combustion taking place within the hot water supply itself, it does not produce chemical substances such as CO, CO2, and NOx, nor does it produce soot.

      • Quiet

        Quiet operation with a background noise of around 45dB.

      • Easy maintenance

        Main consumable components are grouped into a unit.

      • Suitable for use in foodstuff manufacturing

        The design of this product passes leaching tests, meaning the water it supplies can be used in foodstuff manufacturing as is.

      Typical applications

      Can be used in the cleaning of kitchen and kitchen equipment, and as water preparing for food processing.

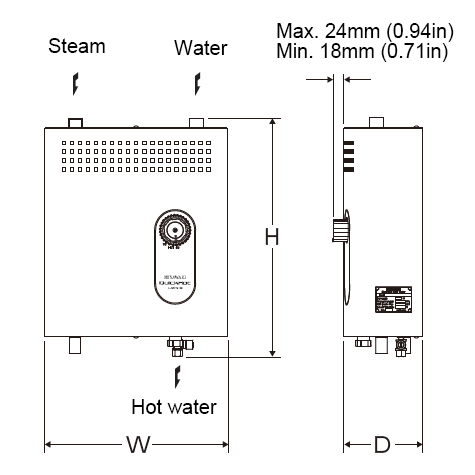

      Dimensions

      Dimensions/Weight


      Dimensions (mm) Dimensions (in) Weight
      W H D W H D (kg) (lb)
      375 408 153 14.8 16.1 6.0 16,0 35.3


      Specifications

      Model Connection

      Heating

      method

      Installation

      method

      Hot water

      supply method

      Type Size

      Steam

      inlet

      Water

      inlet

      Hot water

      supply

      Steam

      condensate

      discharge

      Pressure relief

      valve discharge

      Inspection

      valve

      LM15-Ⅳ

      Screwed

      Rc

      1/2” 1/2” 1/2” 3/8” 3/8” 1/8”

      Indirect

      heating

      Wall

      mounted

      One-way

      hot water supply

      (circulated water

      supply not possible)

      Model

      Hot water supply

      temperature range

      Hot water

      supply pressure

      Steam pressure

      Water supply pressure

      Max. steam

      use rate

      (kg/h)

      Max. heat exchange

      volume

      (kW)

      Range

      (MPa)

      Range

      (psig)

      Range

      (MPa)

      Range

      (psig)

      LM15-Ⅳ 40 - 70℃ 104 - 158℉

      Depends on

      water supply

      pressure

      0,1 - 0,3

      (flow pressure)

      14.5 - 43.5

      (flow pressure)

      0,1 - 0,4*

      (flow pressure)

      14.5 - 58*

      (flow pressure)

      92 54

      ●Accessories:Y strainer (100 mesh)               x2
       Acrylic thermometer                     x1
       Tee fitting (for thermometer installation)      x1
       Bush (for thermometer installation)               x1

      ●The maximum rated heat output through steam pressure is 46,200kcal/h.
      *Do not exceed 0,4 MPa (58psig) of water supply pressure under static pressure.

      ●If recovering condensate, ensure a pressure differential of at least 0,03MPa (4.4psig).
      If back pressure is applied to the condensate discharge pipe, the maximum hot water supply rate drops.

      ●Low-temperature options: A 30℃ - 50℃ (86°F - 122°F)type*1 can be manufactured. Please do not hesitate to make inquiries.
      *1 The 30℃ - 50℃ (86°F - 122°F) type has not undergone any leaching performance tests.

      ●In the event of deterioration of internal components, performance may fall below the performance when the product passed its leaching performance test.

      Hot Water Capacity

      Steam pressure Water supply pressure

      Hot water supply rate (ℓ/min) by water temperature

      (MPa) (psig) (MPa) (psig) 40℃ 50℃ 60℃ 70℃
      104℉ 122℉ 140℉ 158℉
      0,1 14.5 0,1 14.5 16 11 8 7
      0,2 29
      0,3 43.5
      0,4 58
      0,2 29 0,1 14.5 18 16 12 10
      0,2 29 23
      0,3 43.5
      0,4 58
      0,3 43.5 0,1 14.5 19 17 15 13
      0,2 29 26 22 16
      0,3 43.5 30
      0,4 58

      ● Hot water supply rate is for when water supply temperature is 15℃ (59°F)
      ●Minimum flow rate 5ℓ/min
      ● If the flow rate drops below the minimum then this may cause fluctuations in hot water supply temperature.



      Installation Examples


      ■Related Products Models for reference
       Steam traps  DV1-10L
       Separator   H3  H5


      *This water heater indirectly heats up cold water by using the heat from steam.
      Thus, the generated hot water is unaffected by additives presence in the steam.



      Related Products

      Related Products

      Electrical safety shutoff system
      LMG1




      Pressure reducing valve for LM15 series

      RE1LM




      Diaphragm steam trap
      DV1-10L




      Pressure reducing valve for steam
      REC1




      Separator

      H3


      Separator

      H5


       Water-saving spray nozzle

      MK2/MKMV


      Hose reel set for cleaning

      Max. usage temperature: 100℃ (212℉)

      Available hose length:

      5m(196.9 in), 10m (393.7 in), 15m (590.6 in)




      Hose hanger

      All stainless steel and wall-mounted


      Acrylic Termometer
      PU60N

      Measurement range :0-150℃ (32 - 323℉)

      External diameter     :63mm (2.5 in)

      Screwed:R3/8

      Temperature sensor length  :40mm (1.6 in)
