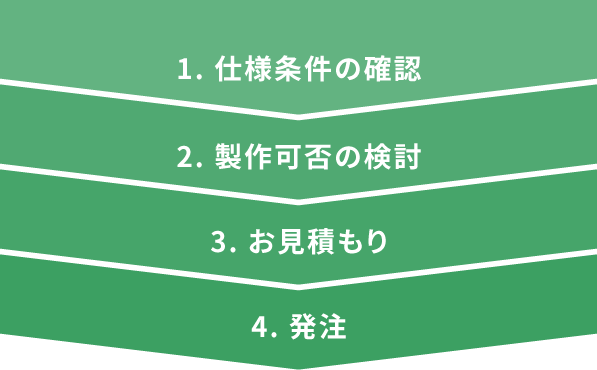

Ordering Procedure
Customized Product Manufacturing Examples
-
1. Temperature control trap for low temperatures
Request: Set temperature of the temperature control trap to be less than 50 ℃ (122 ℉)
Solution: Thermosensitive unit switched from bimetal to thermoelement
-
-
Standard
settable temperature range50 - 200 ℃ (122 - 392 ℉)
-
-
Custom
settable temperature range20 - 100℃ (68 - 212 ℉)
-
-
2. Super high-temperature high-pressure temperature control trap
Request: Increase temperature control trap allowable temperature and pressure
Solution: Switch body material from WC9 to F91
-
-
Standard
max. allowable pressure (PMA)25,0 MPa (3625 psig)
-
-
Custom
max. allowable pressure (PMA)43,1 MPa (6250 psig)
-
Standard
max. allowable temperature (TMA)593 ℃ (1100 ℉)
-
-
Custom
max. allowable temperature (TMA)620 ℃ (1148 ℉)
-
Customizations
*Please feel free to inquire regarding customizations not included in the above.
*Please feel free to inquire regarding customizations not included in the above.
Examples
Steam Trap for Superheated Steam Ducts

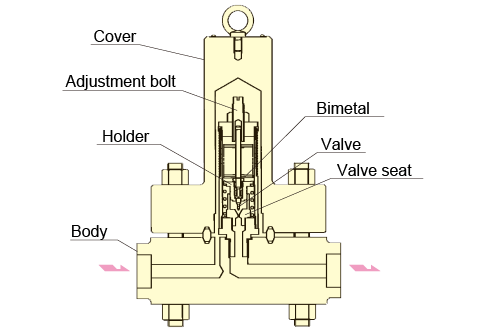

TBG82 (Bimetal Temperature Control Trap)
- Model
- TBG82
- Max. operating pressure (PMO)
- 20,0 MPa (2900 psig)
- Max. allowable pressure (PMA)
- 43,1 MPa (6250 psig)
- Max. operating temperature (TMO)
- 570 ℃ (1058 ℉)
- Max. allowable temperature (TMA)
- 620 ℃ (1148 ℉)
- Body material
- Forged Steel F91
- Size
- 1/2”・3/4”・1”
Steam Trap for Nuclear Power Plants

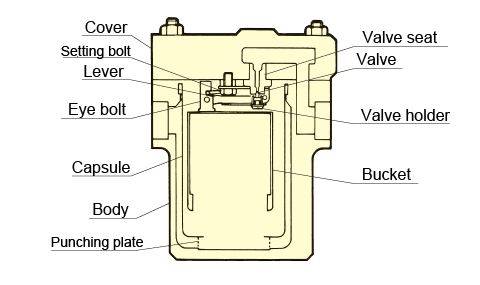

PESA8N (Inverted Bucket Trap)
- Model
- PESA8N
- Max. operating pressure (PMO)
- 1,6 MPa (232 psig)
- Max. operating temperature (TMO)
- 350 ℃ (662 ℉)
- Body material
- A105 or A182F11
- Size
- 1/2”・3/4”・1”
