Ancillary Equipment Inline Mixers　DMX-N

Ancillary Equipment Inline Mixers

DMX-N

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Automatic air venting

    For condensate recovery 　Stainless steel OK

    Ancillary Equipment Inline Mixers　DMX-N

    Features/Applications

    Features

    • Smooth mixing

      Sends condensate from a trap smoothly to a main recovery pipe, and prevents water hammer.

    • No maintenance required, long lifespan, simple installation

    • Can be installed in small spaces

    • Can be used in explosion prevention areas

      As they do not use electricity, they can be used in explosion prevention areas.

    Typical applications

    Suitable for condensate recovery  line.

    Please note that this product does not supply hot water.

    Dimensions/Weight

    Dimensions/Weight




    Size

    A×B

    		 Dimensions (mm) Dimensions (in) Weight
    L1 L2 H W L1 L2 H W (kg) (lb)
    3/4”×3/4” 350 80 100 61 13.8 3.2 3.9 2.4 5,0 11.0
    3/4”×1” 76 3.0 7,0 15.4
    1”×1”
    3/4”×1 1/4” 89 3.5 10,0 22.1
    1”×1 1/4”
    1 1/4”×1 1/4”
    3/4”×1 1/2” 400 90 140 114 15.8 3.5 5.5 4.5 11,5 25.4
    1”×1 1/2”
    1 1/4”×1 1/2”
    3/4”×2” 12,5 27.6
    1”×2”
    1 1/4”×2”

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    temperature

    Body

    material
    Type

    Size

    A×B

    		 (MPa) (psig) (℃) (℉)

    DMX-N

    Flanged

    FF,RF*

    		 3/4”×3/4” 1,0 145 185 365

    Carbon steel

    STPG370
    3/4”×1”
    1”×1”
    3/4”×1 1/4”
    1”×1 1/4”
    1 1/4”×1 1/4”
    3/4”×1 1/2”
    1”×1 1/2”
    1 1/4”×1 1/2”
    3/4”×2”
    1”×2”
    1 1/4”×2”
    DMX-U

    Flanged

    FF,RF*

    		 3/4”×3/4”

    1,0

    		 145 185 365

    Stainless steel

    SUS304
    3/4”×1”
    1”×1”

    3/4”×1 1/4”
    1”×1 1/4”
    1 1/4”×1 1/4”
    3/4”×1 1/2”
    1”×1 1/2”
    1 1/4”×1 1/2”
    3/4”×2”
    1”×2”
    1 1/4”×2”

    *Can potentially meet these flange standards: JIS 10K
    ●Please inquire separately regarding materials and size B (large diameter).

    Discharge Capacity

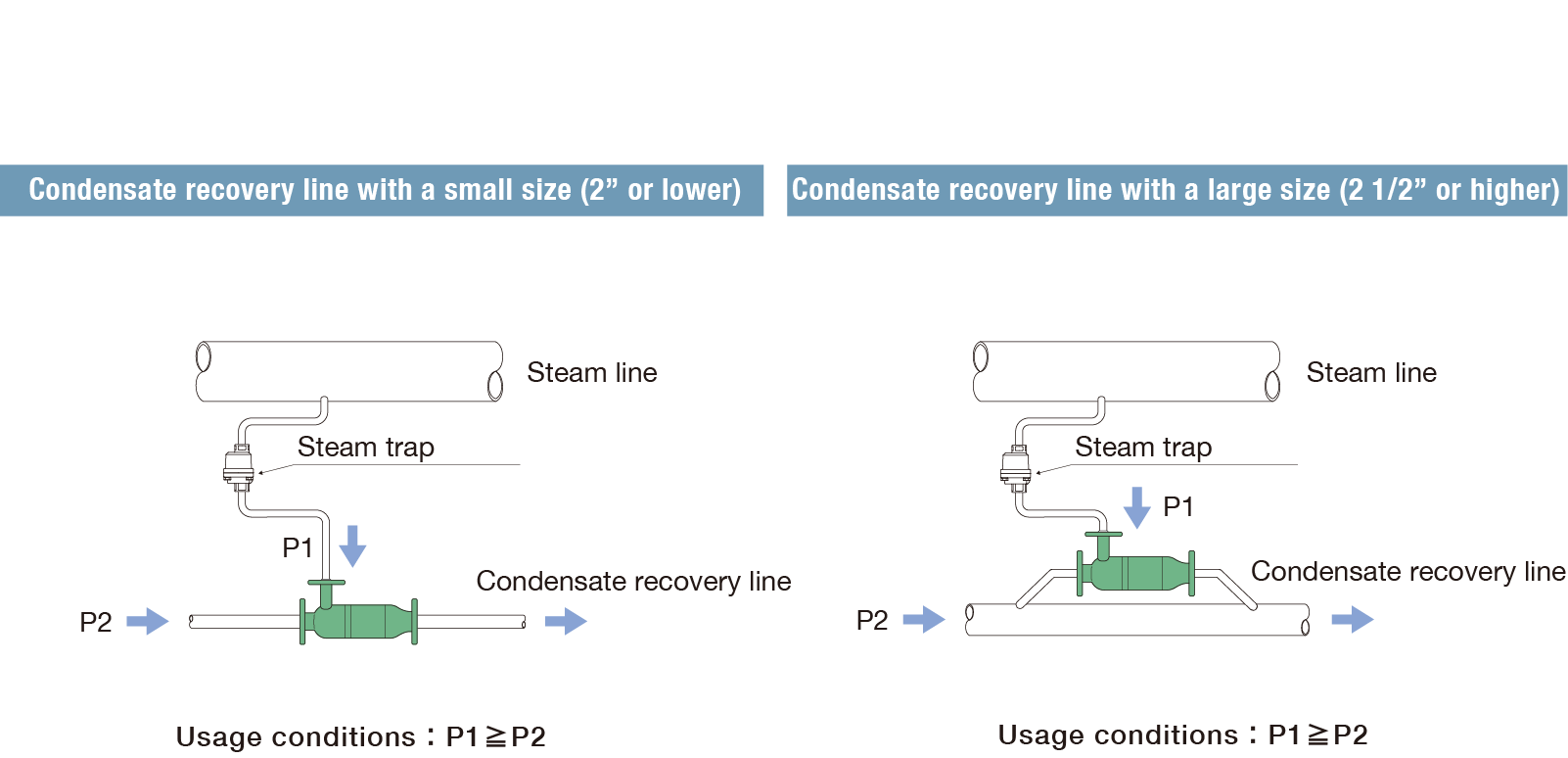

    Installation Examples


    Download

    * Membership registration is required to download the documents.

    Features

    • Smooth mixing

      Sends condensate from a trap smoothly to a main recovery pipe, and prevents water hammer.

    • No maintenance required, long lifespan, simple installation

    • Can be installed in small spaces

    • Can be used in explosion prevention areas

      As they do not use electricity, they can be used in explosion prevention areas.

    Typical applications

    Suitable for condensate recovery  line.

    Please note that this product does not supply hot water.

    Dimensions/Weight




    Size

    A×B

    		 Dimensions (mm) Dimensions (in) Weight
    L1 L2 H W L1 L2 H W (kg) (lb)
    3/4”×3/4” 350 80 100 61 13.8 3.2 3.9 2.4 5,0 11.0
    3/4”×1” 76 3.0 7,0 15.4
    1”×1”
    3/4”×1 1/4” 89 3.5 10,0 22.1
    1”×1 1/4”
    1 1/4”×1 1/4”
    3/4”×1 1/2” 400 90 140 114 15.8 3.5 5.5 4.5 11,5 25.4
    1”×1 1/2”
    1 1/4”×1 1/2”
    3/4”×2” 12,5 27.6
    1”×2”
    1 1/4”×2”
    Model Connection

    Max. operating

    pressure

    Max. operating

    temperature

    Body

    material
    Type

    Size

    A×B

    		 (MPa) (psig) (℃) (℉)

    DMX-N

    Flanged

    FF,RF*

    		 3/4”×3/4” 1,0 145 185 365

    Carbon steel

    STPG370
    3/4”×1”
    1”×1”
    3/4”×1 1/4”
    1”×1 1/4”
    1 1/4”×1 1/4”
    3/4”×1 1/2”
    1”×1 1/2”
    1 1/4”×1 1/2”
    3/4”×2”
    1”×2”
    1 1/4”×2”
    DMX-U

    Flanged

    FF,RF*

    		 3/4”×3/4”

    1,0

    		 145 185 365

    Stainless steel

    SUS304
    3/4”×1”
    1”×1”

    3/4”×1 1/4”
    1”×1 1/4”
    1 1/4”×1 1/4”
    3/4”×1 1/2”
    1”×1 1/2”
    1 1/4”×1 1/2”
    3/4”×2”
    1”×2”
    1 1/4”×2”

    *Can potentially meet these flange standards: JIS 10K
    ●Please inquire separately regarding materials and size B (large diameter).
