Air Vents for Steam
Air Vents Air Vents for Steam

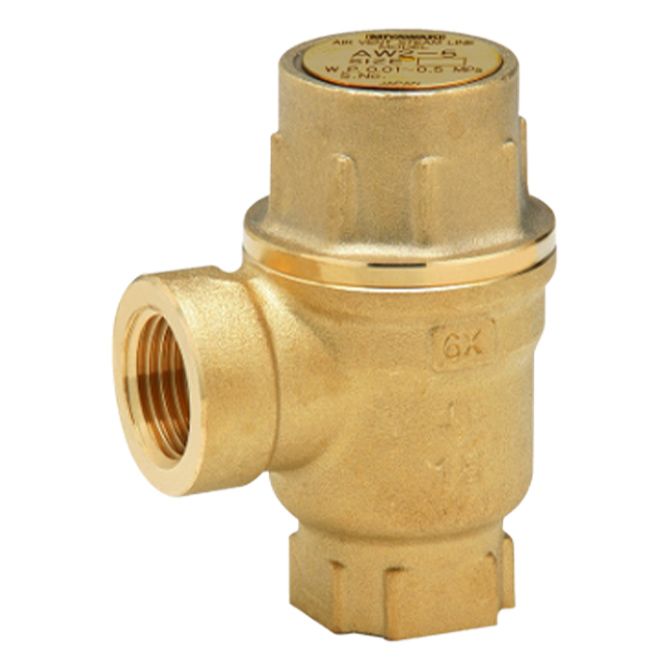

AW2
Features/Applications
Features
Swift air removal
Shortened time to full operation of the device.
Typical applications
Suitable for steam lines and various other devices.
Dimensions/Weight
Dimensions/Weight
| Size | Dimensions (mm) | Dimensions (in) | Weight | |||||||
| L | H1 | H2 | W | L | H1 | H2 | W | (kg) | (lb) | |
| 1/2” | 35 | 42 | 35 | 41 | 1.4 | 1.7 | 1.4 | 1.6 | 0,4 | 0.9 |
| 3/4” | 41 | 1.6 | 0,5 | 1.1 | ||||||
Specifications
| Model | Connection |
Max. operating pressure |
Max. operating pressure differential |
Max. operating temperature |
Body material |
||||
| Type | Size | (MPa) | (psig) | (MPa) | (psig) | (℃) | (℉) | ||
| AW2-5 |
Screwed Rc,NPT |
1/2” | 0,5 | 72.5 | 0,5 | 72.5 | 160 | 320 |
Brass C3771 |
| 3/4” | |||||||||
Download
* Membership registration is required to download the documents.
